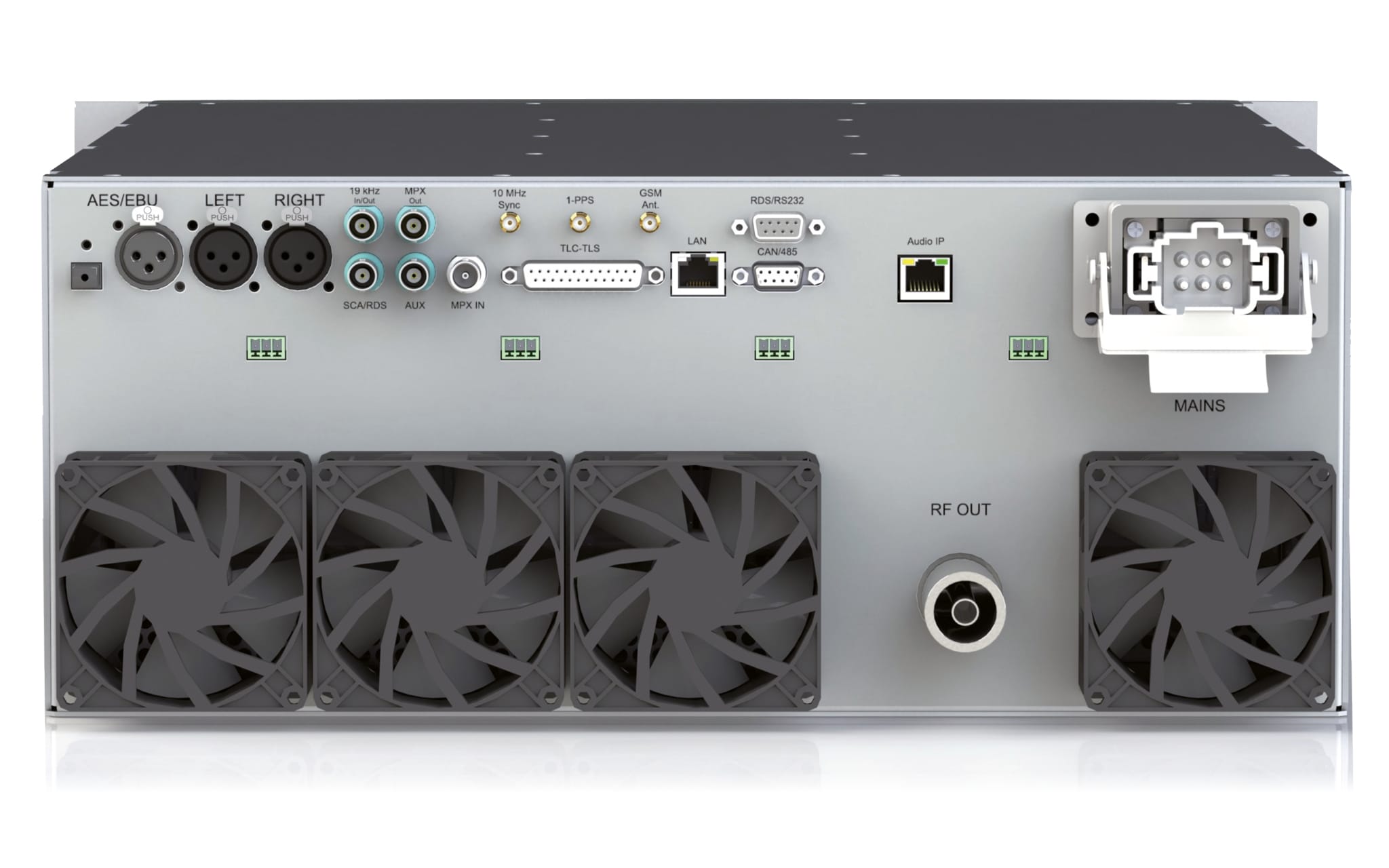

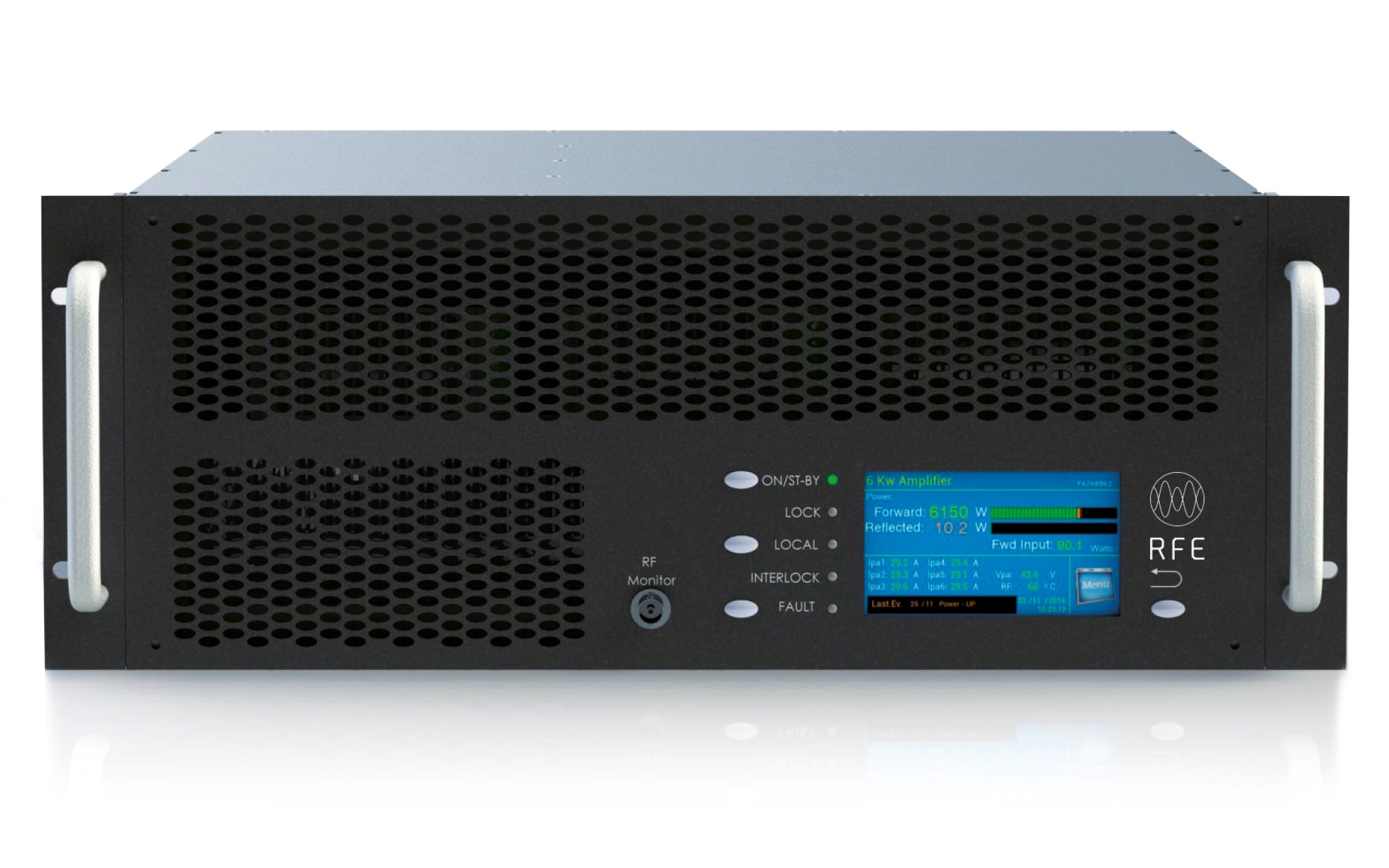

DS6kW FM Transmitter DS6kW FM Transmitter Show Rear

DS6kW FM Transmitter

Available with RF nominal power of 5kW or 6kW.

The Medium Power 5 kW and 6 kW FM Radio Broadcast Transmitters, winner at IBC 2017, combine a very compact size (only 4RU) with RFE most innovative technologies in terms of efficiency, costs and maintenance. A reliable solution, performing ease of use, high reliability and simple control.

The standard configuration includes various features, while others are available on request.

Download Data Sheet
FM Transmitters comparative charts

Main features

  • Highest overall efficiency ≥73%
  • Nominal RF power up to 6000W
  • UAQ Ultimate Audio Quality
  • High stereo performance typ. 60 dB
  • Remote Control through mobile APP
  • Web TCP/IP
  • 6th LD-MOS generation VSWR 65:1
  • Large LCD color display with touch panel
  • Ac mains 90-260 VAC extend range with PFC
  • CCIR & FCC compliant

COSMIC™ Audio Processor

COSMIC™ is the new audio processor made by RFE.

COSMIC™ uses DSP microprocessor in order to obtain a new level of audio quality. DSP is a special microprocessor used in many different audio applications to execute complex algorithms.

The DSP microprocessor allows the digital processing of the audio signal. This means higher audio quality and less distortion.

Download brochure ›
Our Technology

Maximized Efficiency System

MES system regulates the power devices working point, giving better performance.
Maximized Efficiency System
Find out more >

Ultimate Audio
Quality

UAQ technology improves the audio quality, obtaining innovative sound characteristics.
Ultimate Audio <br> Quality
Find out more >

Intelligent Air Cooling System

ICS system regulates the amount of cooling air used by the transmitter, reducing energy waste.
Intelligent Air Cooling System
Find out more >
High Performance

6kW FM Radio Broadcast Transmitters are provided with RFE High Performance technologies, paying great attention to efficiency, sustainability and ease of use.

OPTION: DDS Direct Digital Synthesis, AES/EBU Audio Input, RDS/RBDS coder, SNMP V2-V3 remote control, OIRT and JPN version, Audio Over IP, GPS Telemetry, SFN Reference, Deep Tropicalization

Evolution Touch
Evolution Touch
Software Energy Saving
Software Energy Saving
Full Audio Interface
Full Audio Interface
Mobile Remote Control
Mobile Remote Control

Find out more
